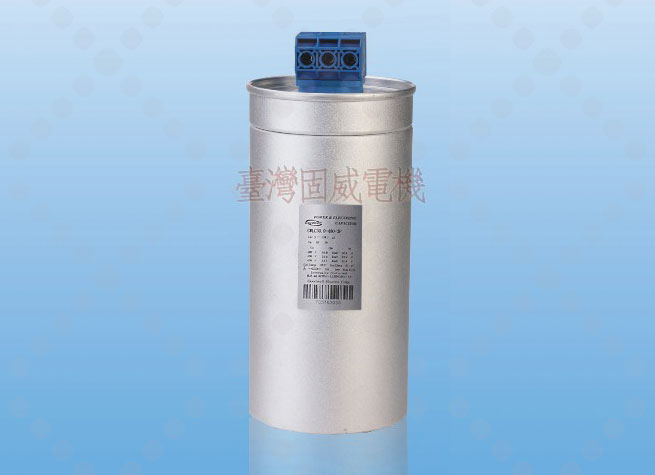

Application
In series connection with proper power reactor, provides power factor correction from 0.5 to 1.0.
Features
- Constructed by higher energy - density dielectric film.
- Insulated by nitrogen gas.
- High overloading design, 20% continuous, 300% peak.
- Life expectancy 20 years.
- Build-in power-off safety device to prevent electrical failure or explosion.
Technical Data
| Standards | VIEC831-1.2 , ENG831-1.2 , VDE0560-46.47 |
|---|---|
| Rated Voltage | 50/60Hz , 100V-525V |
| Rated Power | 0.2Kvar-30Kvar ±5% |
| Power Loss | Terminal-Terminal 0.05% (0.5W/Kvar) , Internal Discharge 0.02% (0.2W/Kvar) |
| Working Temperature | −40°C ~ +60°C |
| Discharge Resistance | Build-in to discharge internal voltage to 50VAC within 1 minute. (IEC831 required: 75VAC within 3 minutes) |
Selection Table
| Type Number Capacitor | Phase | Rated Current (A) | Rated Voltage (V) | Rated Power | Reference Dimension Φ*H (mm) |
|---|---|---|---|---|---|
| GCC34505 | 3 | 6.4 | 450 | 5 Kvar | 65*180 |
| GCC34510 | 3 | 12.8 | 450 | 10 Kvar | 76*240 |
| GCC34515 | 3 | 19.2 | 450 | 15 Kvar | 86*240 |
| GCC34520 | 3 | 25.6 | 450 | 20 Kvar | 96*240 |
| GCC34525 | 3 | 32 | 450 | 25 Kvar | 116*240 |
| GCC34530 | 3 | 38.5 | 450 | 30 Kvar | 106*290 |
| Type Number Capacitor | Phase | Rated Current (A) | Rated Voltage (V) | Rated Power | Reference Dimension Φ*H (mm) |
|---|---|---|---|---|---|
| GCC34805 | 3 | 6.4 | 480 | 5 Kvar | 76*180 |
| GCC34807 | 3 | 9.6 | 480 | 7.5 Kvar | 65*240 |
| GCC34810 | 3 | 12.8 | 480 | 10 Kvar | 76*240 |
| GCC34812 | 3 | 14.4 | 480 | 12 Kvar | 86*240 |
| GCC34815 | 3 | 19.2 | 480 | 15 Kvar | 86*240 |
| GCC34820 | 3 | 25.6 | 480 | 20 Kvar | 96*240 |
| GCC34825 | 3 | 32.1 | 480 | 25 Kvar | 116*240 |
| GCC34830 | 3 | 38.5 | 480 | 30 Kvar | 116*290 |
| Type Number Capacitor | Phase | Rated Current (A) | Rated Voltage (V) | Rated Power | Reference Dimension Φ*H (mm) |
|---|---|---|---|---|---|
| GCC35205 | 3 | 5.5 | 525 | 5 Kvar | 76*180 |
| GCC35210 | 3 | 11.0 | 525 | 10 Kvar | 76*240 |
| GCC35215 | 3 | 16.5 | 525 | 15 Kvar | 96*240 |
| GCC35220 | 3 | 22.0 | 525 | 20 Kvar | 106*240 |
| GCC35225 | 3 | 27.5 | 525 | 25 Kvar | 116*240 |
| GCC35230 | 3 | 33.0 | 525 | 30 Kvar | 116*290 |
| Type Number Capacitor | Phase | Rated Current (A) | Rated Voltage (V) | Rated Power | Reference Dimension Φ*H (mm) |
|---|---|---|---|---|---|
| GCC12805 | 1 | 17.9 | 280 | 5 Kvar | 96*185 |
| GCC12807 | 1 | 26.8 | 280 | 7.5 Kvar | 96*185 |
| GCC12810 | 1 | 35.7 | 280 | 10 Kvar | 96*240 |
| GCC12812 | 1 | 44.6 | 280 | 12 Kvar | 96*285 |
| GCC12815 | 1 | 53.6 | 280 | 15 Kvar | 116*285 |
| GCC12820 | 1 | 71.4 | 280 | 20 Kvar | 116*285 |
