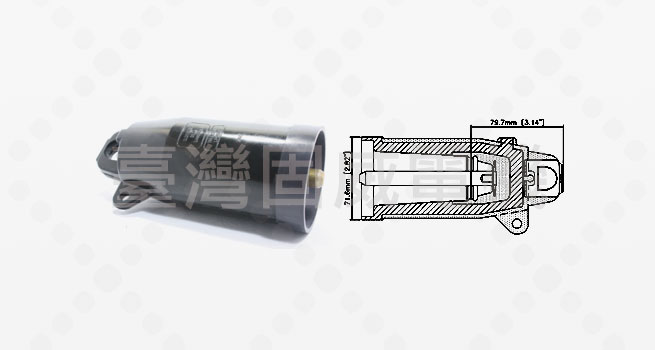

15/25kV 200Amp Loadbreak Protective Cap

15/25kV 200Amp
Loadbreak Protective Cap


  • Standard:ANSI / IEEE Std. 386
  • Features:100% PD tested / Total shielded

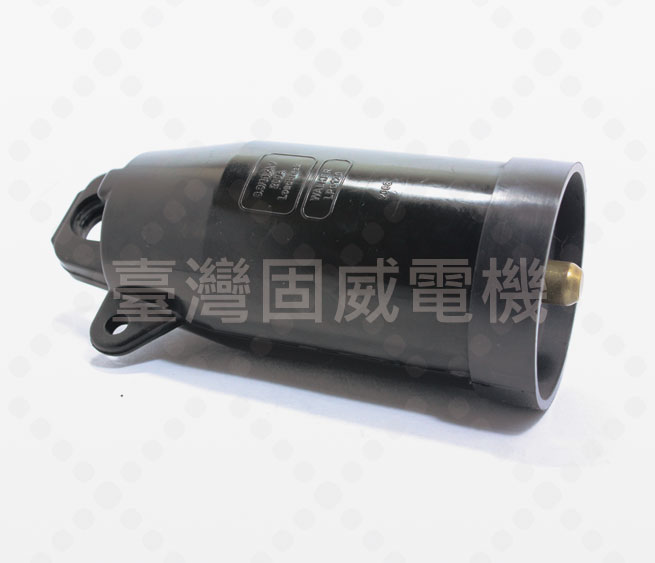

Goodwell Loadbreak Protective Cap meets all the requirements of ANSI/IEEE Standard 386. This cap provides an insulated, fully shielded submersible cover for an energized 15/25kV class loadbreak interface.

It can be used as a temporary or a permanent cover on 8.3/14.4kV or 15.2/26.3 kV loadbreak bushings, portable feedthrus, junctions, and other accessories having interfaces that conform to the same Standards.

The molded EPDM semi-conductive shield maintains ground potential on the cap's surface when the ground wire is attached to a grounding lug.

These caps have been tested in accordance with the requirements of ANSI/IEEE Standard 386-2006, Separable Insulated Connector Systems for Power Distribution Systems above 600 Volts.

Technical Data

Voltage and Current Ratings 15kV Class 25kV Class
Operating Voltage
Maximum Phase-to-Phase 14.4kV 26.3kV
Maximum Phase-to-Ground 8.3kV 15.2kV
Withstand Voltage
AC: 50Hz or 60Hz , 60 sec 34kV 40kV
DC: 15 minutes 53kV 78kV
Impulse Voltage Withstand
1.2 x 50μs 95kV 125kV
Corona Extinction Level
< 3 pC 11kV 19kV
Continuous Current 200Amp 200Amp
Symmetrical Momentary Current 10kA sym. for 10 cycles (0.17s)
Type Number LPC120 LPC220
